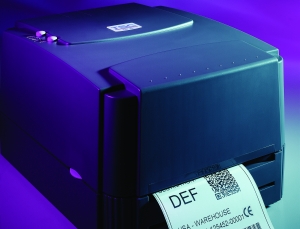

TTP-243 Plus/ TTP-243E Plus/ TTP-342 Plus

THE TOUGHEST, MOST DURABLE PRINTER IN ITS CLASS!




Active Image




In the competitive business world, you need a simple and effective solution for your bar code printing needs. The TSCTM TTP-243 Plus series offers a durable design with versatile capabilities that were created to meet your diversified demands. As our best-selling line of printers, the TTP-243 Plus series offers a plug-and-play design as well as the strongest mechanism in its class.

The TTP-243 Plus series re-defines low volume desktop bar code printing. With the largest media/ribbon capacities, fast print speed, and large memory capacity in its class, the TTP-243 Plus series outperforms the competition easily. These are virtually trouble-free units -- once you plug it in, you won't have to worry about it.

Maximum Print Area
  • TTP-243 Plus/ TTP-243E Plus
    • Width: 104 mm (4.09")
    • Length: 1,000 mm (39.33")
  • TTP-342 Plus
    • Width: 104 mm (4.09")
    • Length: 460 mm (18.11")
Memory
  • 2 MB Flash Memory
  • 2 MB DRAM memory
Resolution
  • TTP-243 Plus/ TTP-243E Plus
    • 203 dpi (8 dots/ mm)
  • TTP-342 Plus
    • 300 dpi (8 dots/ mm)
Dimensions
  • Width: 232 mm (9.13")
  • Height: 156mm (6.14")
  • Depth: 288 mm (11.34")
Print Speeds
  • TTP-243 Plus/ TTP-243E Plus
    • 38mm, 50.8mm, 76mm per second (1.5, 2.0, 3.0 ips)
  • TTP-342 Plus
    • 25mm, 38mm, 50.8mm per second (1.0, 1.5, 2.0 ips)
The TTP-243 Plus series standard features include:
  • 2MB FLASH MEMORY AND 2MB DRAM MEMORY
  • UP TO 76MM (3.0") PER SECOND PRINT SPEED
  • RIBBON CAPACITY UP TO 300M (984')
  • LABEL CAPACITY UP TO 214MM OD (8.4" OD)
  • 2-YEAR LIMITED WARRANTY
  • OPTIONS INCLUDE STAND-ALONE PRINTER CONTROLLER, BAR CODE SCANNER, ROTARY CUTTER, AND EXPANDABLE FLASH MEMORY CARTRIDGES.

Possible applications include shipping & receiving, compliance labeling, asset tracking, inventory control, document management, shelf-labeling & product marking, and specimen labeling & patient tracking.

Active Image

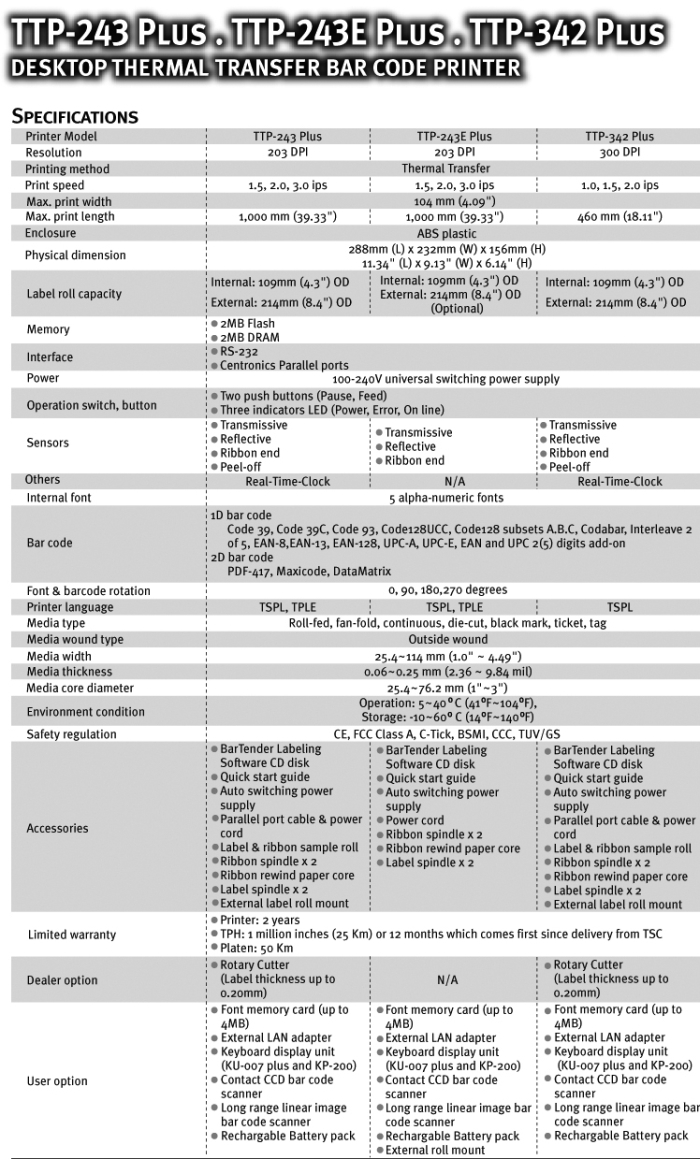

TTP-243 Plus/ TTP-243E Plus/ TTP-342 Plus Product Sheet Download:
