TDP-643R Plus

THE ECONOMICAL CHOICE IN A COMPACT SIZE

Active Image

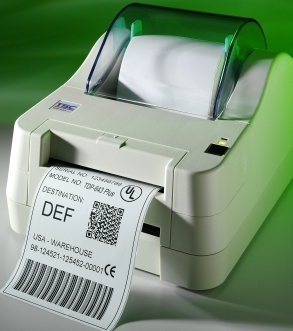

The TSCTM TDP-643R Plus is the best direct thermal desktop printer value. Its low profile, quiet operation and fast label throughput is perfectly suited for the office or shipping room for all kinds of low volume labeling needs. Featuring a fast three inches per second print speed, large 5" OD media supply cabinet and 2MB DRAM, the TDP-643R Plus will not have you waiting around for your labels to print.

Maximum Print Area
  • Width: 104 mm (4.09")
  • Length: 1,000 mm (39.33")
Memory
  • 2 MB Flash Memory
  • 2 MB DRAM memory
Resolution
  • 203 dpi (8 dots/ mm)
Dimensions
  • Width: 220mm (8.66")
  • Height:180 mm (7.09")
  • Depth: 263 mm (10.35")
Print Speeds
  • 38mm, 50.8mm, 76mm per second (1.5, 2.0, 3.0 ips)
While priced for value, the TDP-643R Plus is loaded with the industry's most popular features. Standard features include :
  • 203 DPI RESOLUTION
  • 3 INCHES PER SECOND PRINT SPEED
  • A FRONT PEEL MECHANISM WITH LABEL PRESENT SENSOR
  • 2 MB DRAM, 2 MB FLASH MEMORY
  • 2-YEAR LIMITED WARRANTY
Popular options include:
  • STAND-ALONE KEYBOARD
  • BAR CODE SCANNER
  • CUTTER MODULE
  • BATTERY PACK
  • EXTERNAL MEDIA HANGER, UP TO 8.4 INCHES O.D.
  • ROLL OF LABELS

These units work perfectly within a vast range of industries including shipping & receiving, asset tracking, inventory control, document management, shelf labeling & product marking, and specimen labeling & patient tracking.

Active Image

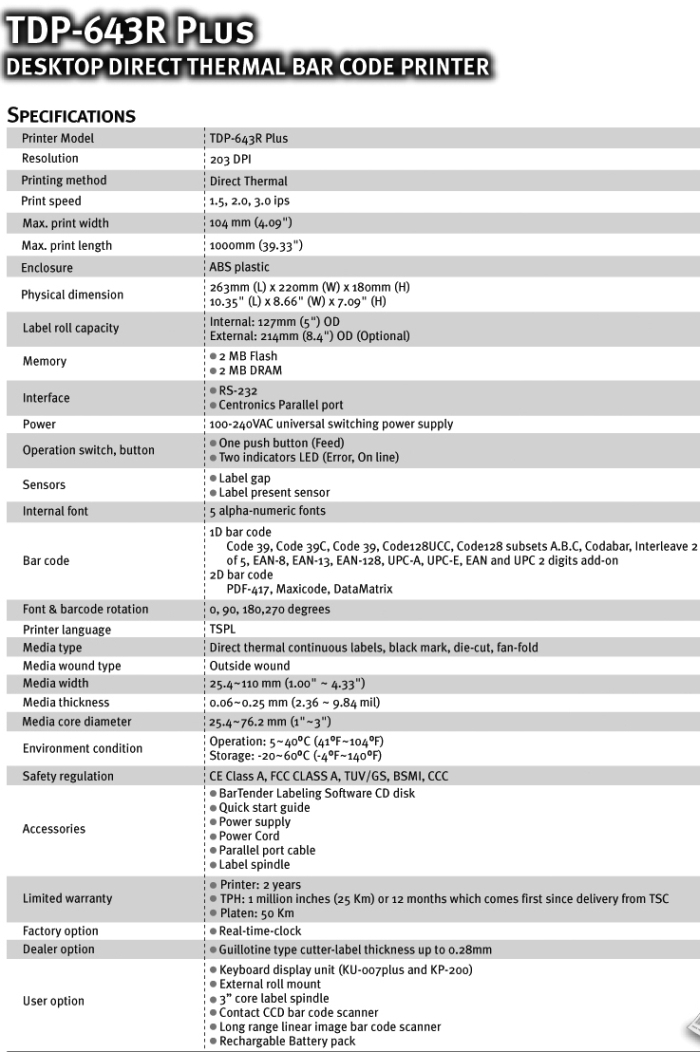

TDP-643R Plus Product Sheet Download: Active Image
