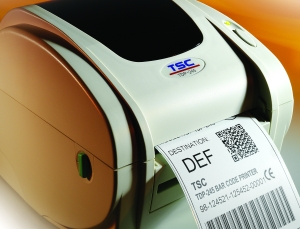

Creating a bar code label has never been easier. TSCTM is proud to announce the fastest, most versatile, user-friendly desktop printer TDP-245 series to ever come to market.

Maximum Print Area
  • Width: 108 mm (4.25")
  • Length: 1,000 mm (39.33")
  • 2 MB Flash Memory
  • 2 MB DRAM memory
  • 203 dpi (8 dots/ mm)
  • Width: 200 mm (7.87")
  • Height: 164mm (6.46")
  • Depth: 240 mm (9.45")
Print Speeds
  • 50.8mm, 76 mm, 102mm, 127mm per second (2.0, 3.0, 4.0, 5.0 ips)
The TDP-245 series features a user friendly clamshell design with a large center biased media capacity. Simply open the cover and drop your labels into the printer. Top of form sensing by gap, black mark, or notch is standard and completely adjustable from side to side. Labels stored inside the printer can be up to a 5" OD on a 1" core. Using an optional external media hanger, a full 8.4" OD roll of labels on a 3" core can be used. The machine offers speed of up to 5" per second with a 203 dpi resolution. The standard memory configuration is a generous 2 MB DRAM, and 2 MB addressable FLASH with an option for up to 8 MB of more FLASH memory.
The TDP-245 series features standard serial, parallel and USB interface, and offers an optional internal Ethernet interface for networked installations. It also supports TSPL II (TSC Printer Language) and multiple emulation programs such as TPLE (Translation Printer Language Eltron) and TPLZ (Translation Printer Language Zebra).

Its simple and elegant design makes the bar code labeling job no longer a difficult task. It is the best solution for shipping/receiving, shelf labeling, and receipt printing applications.

Active Image

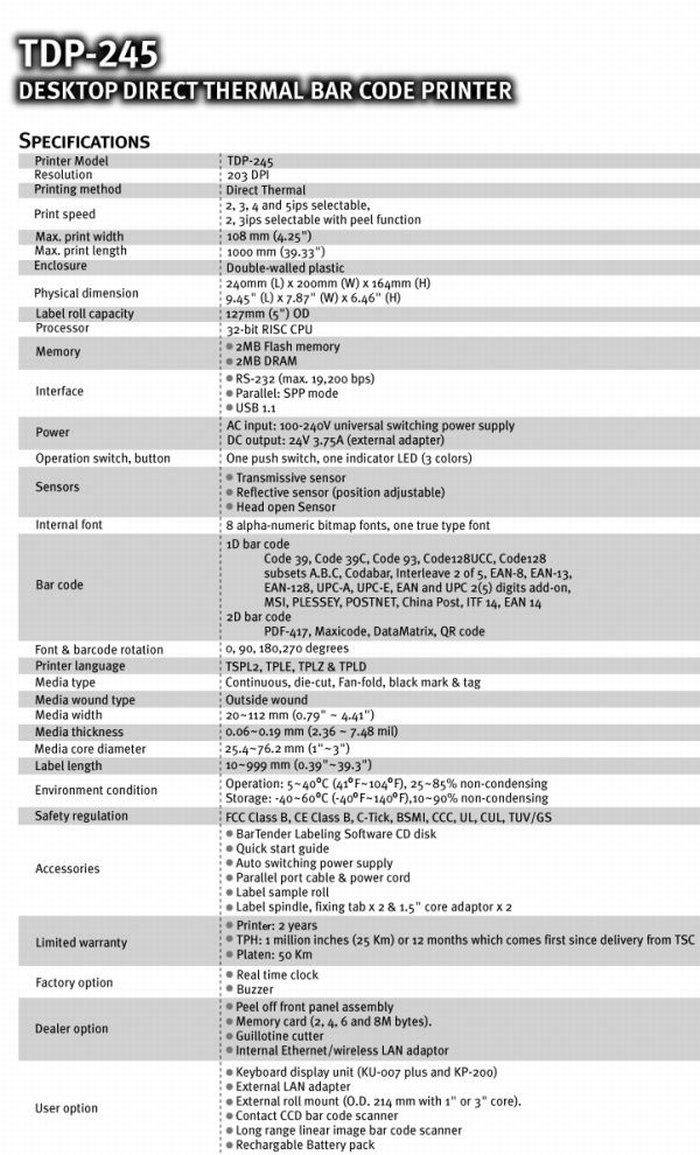

TDP-245 Product Sheet Download: Active Image
