COMBINES MOBILITY, VERSATILITY AND SECURE CONNECTIVITY SOLUTIONS IN ONE TINY PACKAGE. | |

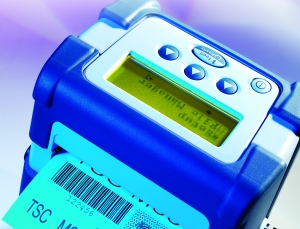

 | | The new TSCTM M23 mobile printer is the first in a series of TSC portable printers. It introduces a whole new dimension for light-weight wired or wireless printing. |
| | Maximum Print Area | - Width: 72 mm (2.83")
- Length:
304.8 mm (12")
| | Memory | - 4 MB Flash Memory
- 2 MB DRAM memory
| | Resolution | | | Dimensions | - Width: 129 mm (5.08")
- Height: 90 mm (3.54")
- Depth: 183.7 mm (7.23")
|
| Print Speeds | - 38mm, 50.8 mm, 76 mm,89mm per second (1.5, 2.0, 3.0 up to 3.5 ips)
|
|
Its 3" print width makes it perfect for retail marking applications such as:
Item marking Markdowns Shelf labeling Small signs Shelf talkers Portable
POS The 3" wide print width allows end users to use the same printer for a variety of applications including traditional item marking, price-markdowns, and re-labeling. The 3" print width also provides the ability to print
shelf-labels horizontally – saving time and money. In addition, emerging applications like printing small signage, or shelf-talkers as well as 3" receipts for portable POS necessitate the 3" print width. The more applications the end user can
address with the same equipment, the easier it is to cost justify the purchase. | The M23 features include: -
Rugged over-molded design can take up to a 6" (182 cm) drop to concrete and keep going
- Full graphic LCD display is standard and shows printer status, battery gauge, set-up menus and error messages
- Full range of connectivity options
including standard RS-232, standard USB, and optional Bluetooth or 802.11b wireless communication capability
- Can print on its back or standing upright for ease of use
- Lightweight - only 2.45 pounds (1.11 kgs) with battery and paper
installed
- Easy media-loading clamshell design
- On demand label peel mechanism is included
- Long-life 7.4V DC 2200mAh Li-ion battery power
- 1" to 3.15" (25.4 to 80.0 mm) wide paper path
|  |

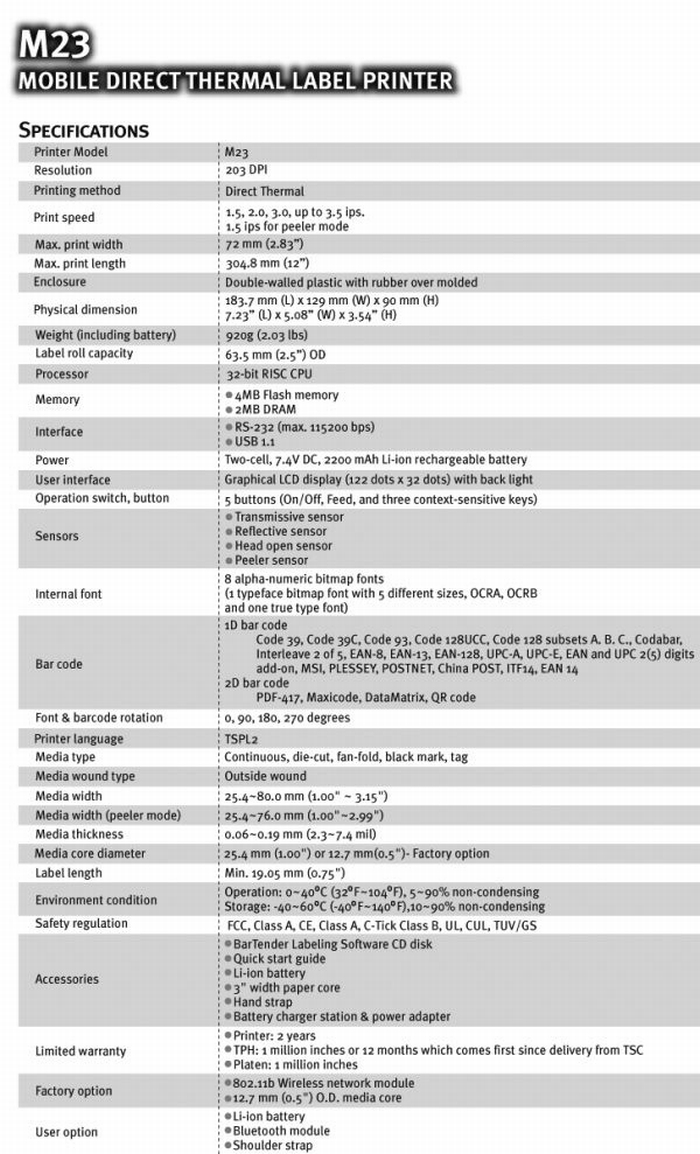

| M23 Product Sheet Download: |  |
 |
